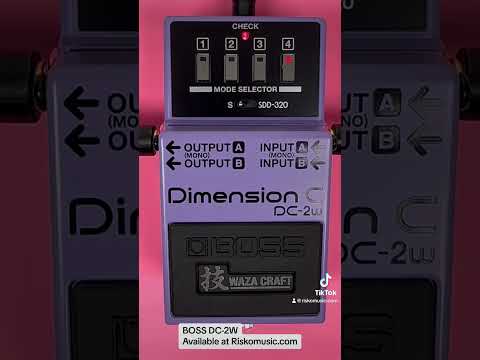

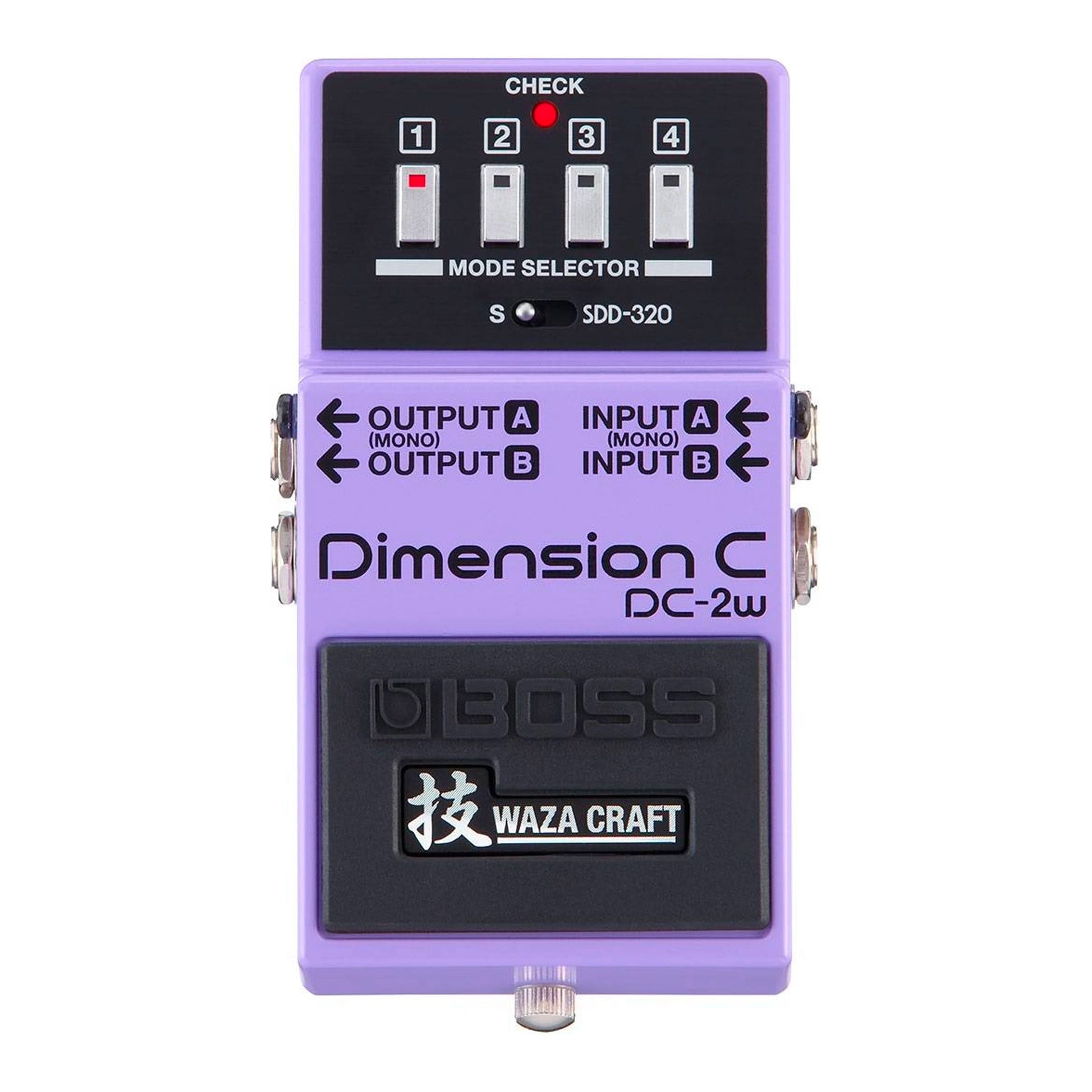

Boss - DC2W

The genuine BOSS and Roland Dimension effect is back, and it's now more versatile than ever! Designed in the premium Waza Craft analog tradition, the DC-2W offers not just a perfect sonic recreation of the original DC-2 Dimension C pedal, but also the legendary SDD-320 Dimension D studio rack effect it was based on. The DC-2W features the same intuitive four-button preset interface as the original '80s-era effects, now evolved with electronic switching that unlocks a multitude of sonic variations not available on the vintage units.

Highly sought-after by musicians and audio engineers, the Dimension's unique spatial processing magically enhances the width and depth of any sound, from electric and acoustic guitars to keyboards, vocals, and other sources. Built from the original circuit designs and updated with modern refinements, the DC-2W is the only pedal available that delivers the classic Dimension experience with complete sonic authenticity.

Features

• Premium Waza Craft pedal with all-analog audio circuitry
• Standard mode provides the sound of the original DC-2 Dimension C pedal
• SDD-320 mode authentically reproduces the vintage Roland SDD-320 Dimension D, a legendary studio rack effect heard on countless hit records
• Iconic four-button preset interface, updated with reliable electronic switches and LED status indicators
• Four main sounds in each mode, plus six variations by pressing two switches together (20 total sounds available)
• Premium buffer and enhanced bypass circuitry
• Versatile I/O for integrating with any mono or stereo application, from guitar and bass pedalboards to keyboards and studio mixing
• Made in Japan
• BOSS five-year warranty

Specs
Modes: S (Standard), SDD-320
Nominal Input Level: -20 dBu
Input Impedance: 2.2 M ohms
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater
Bypass: Buffered bypass

Controls:
• Pedal switch
• S/SDD-320 switch
• MODE SELECTOR [1]--[4] buttons

Indicators:
• CHECK indicator (Serves also as battery check indicator)
• MODE SELECTOR [1]--[4] indicators

Connectors
• INPUT A (MONO) jack: 1/4-inch phone type
• INPUT B jack: 1/4-inch phone type
• OUTPUT A (MONO) jack: 1/4-inch phone type
• OUTPUT B jack: 1/4-inch phone type
• DC IN jack

Power Supply: battery (9 V, 6LR61); AC adaptor (PSA series: sold separately)
Current Draw: 65 mA

Expected battery life under continuous use
• Alkaline: Approx. 6 hours
*These figures will vary depending on the actual conditions of use.

Accessories:
• Owner's manual
• Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
• Alkaline battery (9 V, 6LR61)

Size and Weight:
Dimensions (W x D x H): 73 x 129 x 59 mm (2-7/8 x 5-1/8 x 2-3/8 inches)
Weight (including battery): 450 g (1 lb)
