Boss - EQ200

The EQ-200 is a highly versatile and compact EQ designed for guitar and bass, surpassing all other EQs in its category. It boasts two extensive 10-band EQ channels and a built-in graphic display that provides an instant overview of the current EQ curve. The selectable signal flow structures enable stereo, parallel, or series operation, and external pedals can be integrated to allow for comprehensive pre/post tone customization. Additionally, the EQ-200 permits the frequency centers of all 10 bands to be adjusted to three distinct types, ensuring optimal performance for different instruments.

Specifications
Sampling Frequency: 96 kHz
AD/DA Conversion: 32 bits
Processing: 32-bit floating point
Memory: 4 + Manual
Nominal Input Level: INPUT A/MONO, B: -10 dBu
Maximum Input Level: INPUT A/MONO, B: +7 dBu
Input Impedance: INPUT A/MONO, B: 2 M ohm
Nominal Output Level: OUTPUT A/MONO, B: -10 dBu
Maximum Output Level: OUTPUT A/MONO, B: +7 dBu
Output Impedance: OUTPUT A/MONO, B: 1 k ohms
Recommended Load Impedance: OUTPUT A/MONO, B: 10 k ohms or greater
Bypass: Buffered bypass
Controls: ON/OFF switch, MEMORY switch, 30--12.8 k sliders, LEVEL slider, A/B button, MEMORY button
Display: Graphic LCD (64 x 32 dots, backlit LCD)
Indicator: A/B indicator, MEMORY (MAN, 1--4) indicators

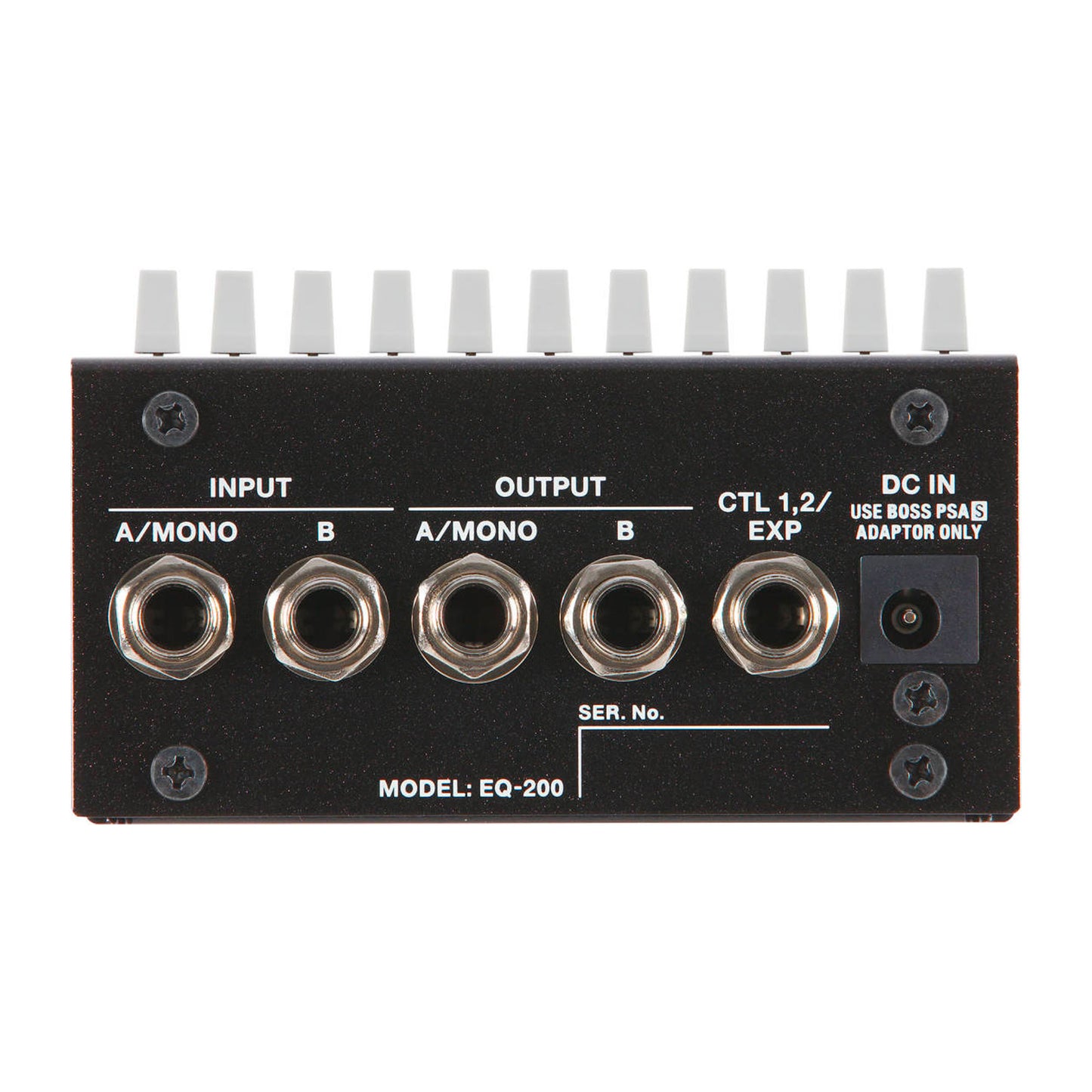

Connectors:
• INPUT (A/MONO, B) jacks, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type
• CTL 1, 2/EXP jack: 1/4-inch TRS phone type
• MIDI (IN, OUT) jacks: Stereo miniature phone type
• DC IN jack
• USB port: USB micro-B type (program update only)
Power Supply: Alkaline battery (AA, LR6) x 3, AC adaptor (sold separately)
Current Draw: 170 mA
Dimensions: 138 x 101 x 60 mm / 5.4" x 4" x 2.4"
Weight: 630 g / 1.4 lb
