Boss - OC5

Next-generation BOSS octave pedal with vintage and polyphonic modes, lightning-fast tracking, and extended range.

By combining the iconic BOSS octave tones with state-of-the-art tracking technologies, the BOSS OC-5 establishes a new benchmark in the realm of octave pedals. Its Vintage mode impeccably replicates the renowned mono OC-2 from 1982, while its Poly mode presents various upgrades for playing in extended ranges. Additionally, the inclusion of an octave-up feature extends the tonal possibilities to three octaves for innovative experimentation. From rich, resonant mono tones to chord progressions with octave-shifted notes and more, the OC-5 sets a new standard of excellence by delivering the broadest tonal range, highest sound quality, and most superior playability in any octave effect pedal produced to date.

Features
• The industry-standard octave pedal, updated with enhanced features
• Newly developed tracking technology provides more accurate response and natural feel with no latency
• Vintage mode faithfully reproduces the mono sound of the original OC-2
• Poly mode for chord playing; Range knob sets the note range where the effect is applied
• Lowest Range setting in Poly mode applies the octave effect to only the lowest note in a chord
• New octave-up effect, available on its own or blended with octave-down effects
• Mode switch optimizes the sound engine for guitar or bass
• Direct out for wet/dry setups
• BOSS five-year warranty

Specifications

Nominal Input Level: -20 dBu
Input Impedance: 1 M ohm
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater

Bypass: Buffered bypass

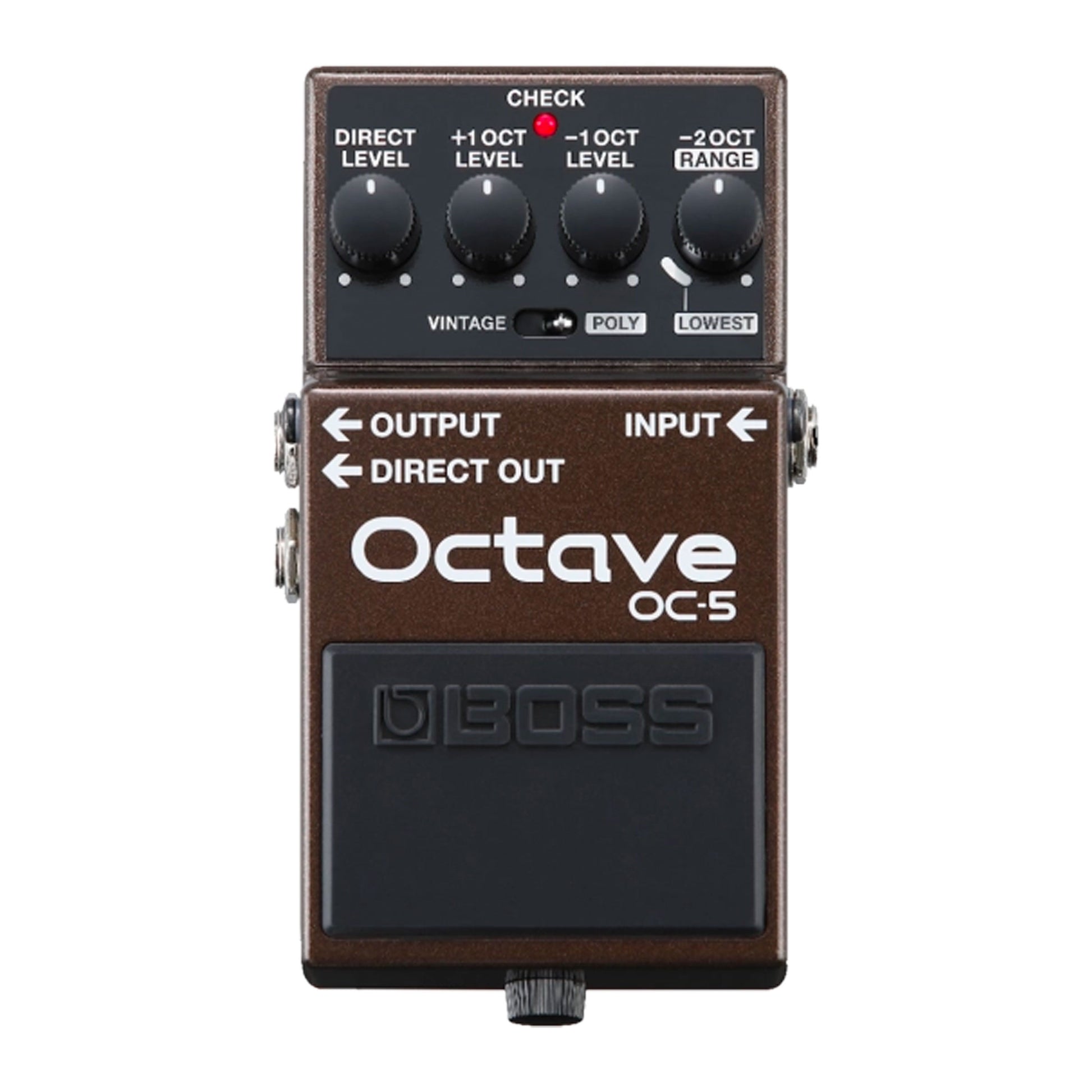

Controls: Pedal switch, GUITAR/BASS switch, VINTAGE/POLY switch, DIRECT LEVEL knob, +1OCT knob, -1OCT knob, -2OCT/RANGE knob
Indicator: CHECK indicator (Serves also as battery check indicator)

Connectors:
Input jack: 1/4-inch phone type
Output jack: 1/4-inch phone type
Direct Out jack: 1/4-inch phone type

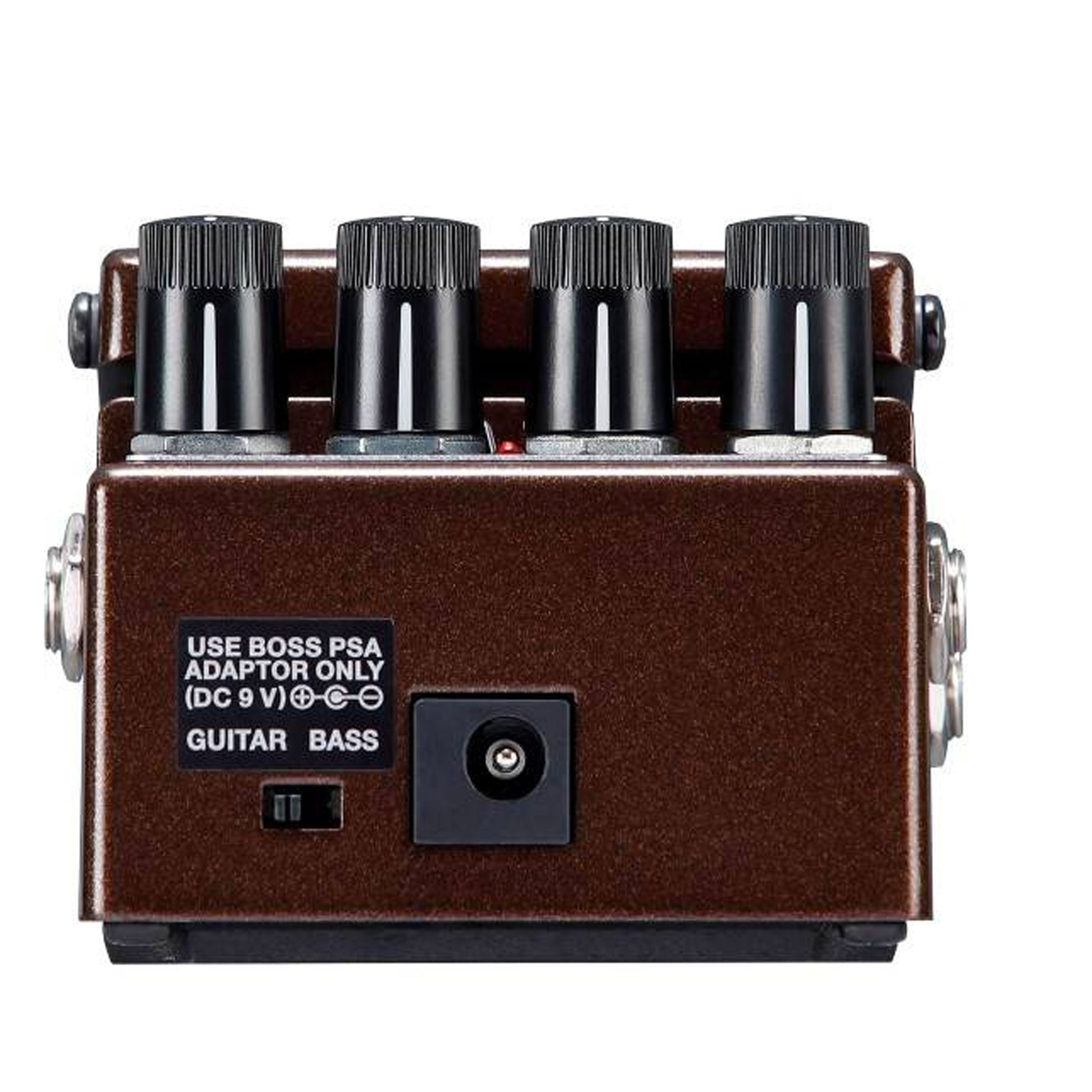

DC In jack

Power Supply: Alkaline battery (9 V, 6LR61 or 6LF22)
Current Draw: 55 mA

Expected battery life under continuous use:
Alkaline: Approx. 7 hours
