• Guitar Effects Pedal Power Supply with 12 Isolated Outputs – 2300mA
  • Guitar Effects Pedal Power Supply with 12 Isolated Outputs – 2300mA
1 2

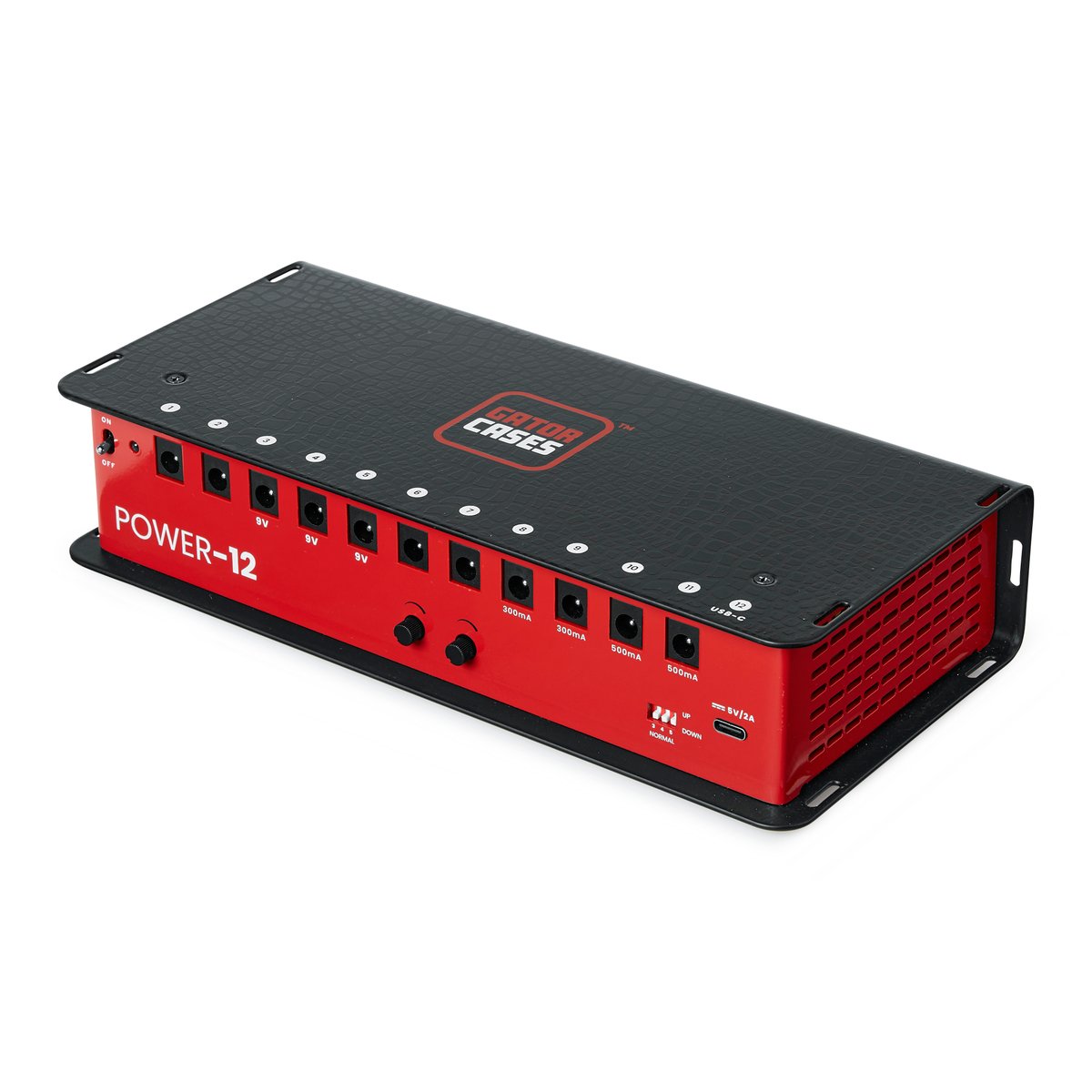

Gator Cases - GTR-PWR-12

GTR-PWR-12 - Pedalboard Power Supply; 12 Outputs – 2300Ma

Model GTR-PWR-12
Width 0 in
Length 0 in
Height 0 in

Brand Gator Cases

$179.99
$289.99 $179.99
Sale Sold out
View full details

Guitar Effects Pedal Power Supply with 12 Isolated Outputs – 2300mA

  • Guitar Effects Pedal Power Supply with 12 Isolated Outputs
  • Outputs: 2 x 18V DC @ 120mA, 3 x 9/12V DC @ 120mA, 2 x 4~9V DC @ 120mA, 2 x 9V DC @ 300mA, 2 x 9V DC @ 500mA, 1 x USB @ 5V/2A (10W), 1 x AC Outlet
  • Maximum Output Current: 2300mA
  • AC Power Input with Switchable Voltage Between 115V/240V (50-60Hz) for International Use
  • AC Power Input with Switchable Voltage Between 115V/230V (50Hz-60Hz) for International Use
  • Voltage Adjustable on Outputs 3, 4 & 5 via DIP Switches
  • Continuously Variable Voltage (4v ~ 9v) on Two (2) Outputs to Simulate Low Battery Effects
  • AC Outlet on Rear Side
  • Integrated Slots Allow for Direct Mounting to Pedal Board
  • On/Off Power Switch with LED Indicator Light
  • Heavy-Duty All Metal Enclosure with Slotted Vents for Heat Dissipation
  • Product Dimensions: 9.88”/251mm (L) x 4.5”/114mm (W) x 2”/51mm (H). Net Weight: 3.8 lbs./1.72 kg
